During drilling process, the PDC drill bits with steel body is able to provide excellent drilling performance and durability to improve drilling performance and reduce cost.

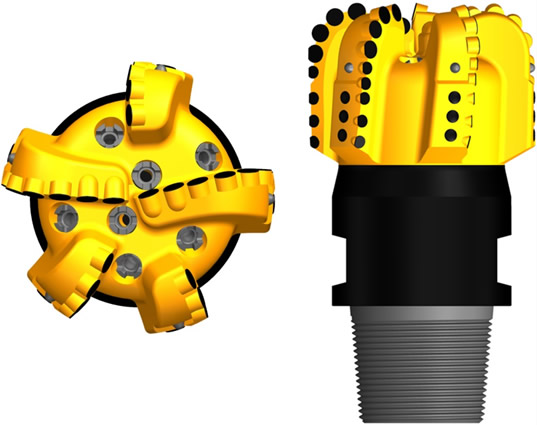

9-1/2" S519RMG/S223
◆Body Material: Steel products with extremely strong tenacity.
◆Blade Quantity and Mode: 5 blade screw design which is composed of 2 long blades and 3 assistant blades to properly control torque during drilling.
◆Crown Shape: Design of shallow cone parabola shape, good for the operation of build-up and drop-off.
◆Water Nozzle Design: 7 pieces of adjustable nozzles are applied to satisfy the requirements of down hole assembly and to ensure the washing and cooling of drill bit as well as the transportation of rock debris.
◆Cutting Tooth: Total 46 pieces including 24 pieces of 19 mm main cutting teeth on surface, 22 pieces of 13 mm back teeth with high wear resistance and strong shock resistance are applied.
◆Gauge Protection: Containing the active gauge protection cutting tooth and ball surface tooth, the drill bit has 2-3/4” long gauge protection which helps operation on build-up and drop-off.
◆Connection Method: 6-5/8”REG. pin screw connection.
Application Example
The drill bits were applied to 9-1/2”borehole from Liao River Oil Field with formation of Dongying, Shahe. The lithology is the interbedding of siltstone, sandstone and mudstone belong to soft formation. Two drill bits were used. As for the first one, the drilling well section is 1656m-2780m with footage of 1124m and average penetration rate of 15.2m/h. and for the second one, the drilling well section is 2961m-3180m and 3183.9m-3443m with footage of 478.1m and average penetration rate of 10.1m/h.

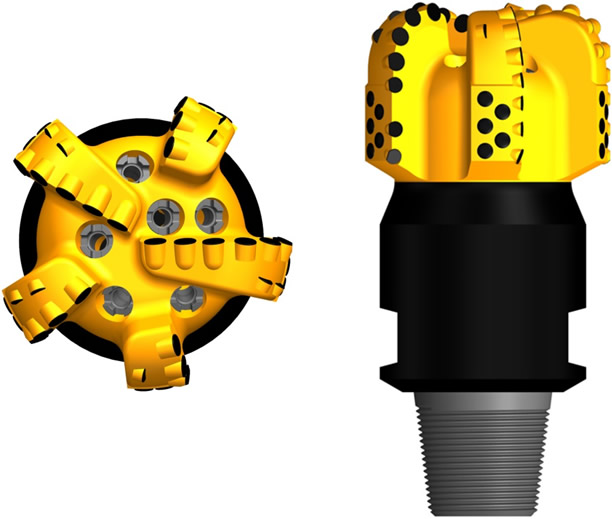

8-1/2” S516BMG/S223
◆Body Material: Steel products with extremely strong tenacity.
◆Blade Quantity and Mode: 5 blade screw design which is composed of 2 long blades and 3 assistant blades to is helpful to wash cutting tooth.
◆Crown Shape: Design of shallow cone parabola shape, good for the operation of build-up and drop-off.
◆Water Nozzle Design: 6 pieces of adjustable nozzles are applied to satisfy the requirements of down hole assembly and to ensure the washing and cooling of drill bit as well as the transportation of rock debris.
◆Cutting Tooth: Total 49 pieces including 23 pieces of 16 mm main cutting teeth on surface, 9 pieces of 13 mm back teeth and 17 pieces of 13 mm side assistant cutting teeth with high wear resistance and strong shock resistance are applied.
◆Gauge Protection: Containing the active gauge protection cutting tooth and ball surface tooth, the drill bit has 2.5” long gauge protection which helps operation on build-up and drop-off.
◆Connection Method: 4-1/2”REG. pin screw connection.
This kind of drill bits is applied in Su 10, Su 11 and Tao 7 Block from Sulige gas field with formation of Liujiagou, Shiqianfeng, Shihezi and Shanxi. The lithology is fined mud-siltstone, mudstone and coarse sandstone. In accordance with reflection from usage condition, the footage of single drill bit footage is 700m-932m and the average penetration speed is 10.2m/h-11.5m/h.
